Aluminum Insulation Tape
Aluminum Insulation Tape features a high-tensile foil, strong adhesive, and optional scrim reinforcement. It is designed for vapor sealing, joining insulation, and heavy-duty repairs across HVAC systems, ductwork, and industrial pipes.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Introduction
Aluminum Insulation Tape features a high-tensile foil, strong adhesive, and optional scrim reinforcement. It is designed for vapor sealing, joining insulation, and heavy-duty repairs across HVAC systems, ductwork, and industrial pipes.
Product Specifications
|
Property / Parameter |
Technical Data / Specification |
|
Backing Material |
Dead soft aluminum foil (Plain or Scrim-reinforced FSK) |
|
Adhesive Base |
High-shear solvent acrylic / Extreme-weather cold-weather acrylic |
|
Foil Thickness |
0.030 mm (1.2 mils) to 0.050 mm (2.0 mils) ± 0.002 mm |
|
Total Thickness (Excl. Liner) |
0.070 mm (2.8 mils) to 0.090 mm (3.5 mils) |
|

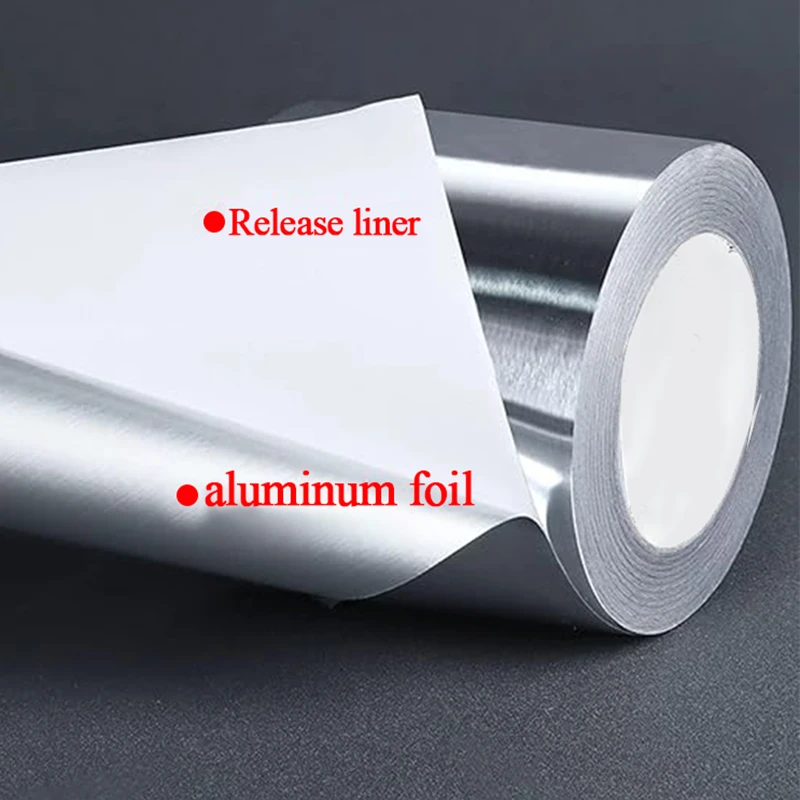

Release Liner |
Silicone-coated PE-infused craft paper |
|
Adhesion to Steel |
≥ 12 N/25mm |
|
Tensile Strength |
≥ 45 N/25mm (Plain) / ≥ 100 N/25mm (FSK Reinforced) |
|
Temperature Range |
-30°C to +120°C (-22°F to +248°F) |
|
Vapor Permeability |
0.00 g/m² · 24hr (Complete moisture barrier) |
Key Product Features
Thermal Conductivity & Reflection: Maximizes HVAC energy efficiency by reflecting radiant heat and protecting sensitive adjacent components from thermal damage.
All-Weather Adhesion: Formulated with an advanced acrylic polymer that bonds instantly to fiberglass wrap, sheet metal, and duct board, even in freezing cold or high-humidity environments.
Flame Retardant Properties: Naturally flame-resistant aluminum backing combined with fire-retardant adhesive additives ensures high passive safety ratings.
Product Applications
HVAC Duct Sealing: Sealing seams and joints of rigid air ducts, flexible fiberglass ducts, and metallic sheet air handling systems.
Thermal Insulation Facing: Splicing and patch repairing foil-faced insulation blankets, FSK jackets, and reflective pipe wraps.
Appliance Manufacturing: Securely fixing cooling coils and heating elements in industrial refrigeration units and domestic appliances.
EMI/RFI Shielding: Providing effective electromagnetic and radio-frequency interference shielding for delicate electronic enclosures and cables.
Why Choose Us?
Tier-1 Factory Credentials: Audited ISO 9001:2015 and ISO 14001:2015 certified manufacturing.
Advanced Coating Infrastructure: 4 automated coating lines with beta-ray scanners for precise adhesive consistency.
High-Volume Output: 4,000,000 m² monthly capacity ensures an uninterrupted supply chain.
Low Procurement MOQ: Order as few as 2 Jumbo Rolls to optimize your inventory.
Shipping & Logistics
Packaging: Clean-cut rolls in PE shrink sleeves inside 5-layer cartons. Stacked on ISPM 15 pallets with corner guards and stretch wrap.
Trade Terms: FOB, CIF, DDP, EXW.
Lead Times:
Samples: 48-hour dispatch (3–5 days transit).
Standard Bulk: 14–17 days to port.
Custom/OEM: 20–25 days from artwork approval.
Quality Assurance
Traceability: Unique lot matrix codes on all packaging link to a 2-year archive of raw material and production data.
Testing: 100% batch testing for shear-adhesion, peel strength, and environmental aging before shipment.
Warranty: 18-month performance warranty against degradation when stored at 21°C and 40–50% RH.
Environmental Compliance: Formulated with eco-friendly, low-VOC acrylic adhesives, fully aligned with European green building initiatives and modern ESG procurement mandates.
FAQ
Q: Does your aluminum insulation tape carry UL certification for construction and HVAC tenders?
A: Yes, our specialized foil tapes are built and tested to meet industry-standard flame spread and smoke developed indices like UL 723 or BS 476, making them fully code-compliant for commercial projects across North America and Europe.
Q: Can this tape be applied at temperatures below freezing?
A: Our standard grade requires a minimum application temperature of +5°C (41°F). However, we manufacture a dedicated Cold-Weather Acrylic Grade engineered to bond instantly down to -10°C (14°F). Once cured, both versions can withstand temperatures dropping to -30°C (-22°F).
Q: What is the difference between plain aluminum foil tape and FSK tape?
A: Plain foil tape uses soft aluminum for optimal moldability around curved joints and pipes. FSK (Foil-Scrim-Kraft) tape is reinforced with a fiberglass yarn grid laminated to kraft paper, offering massive puncture and tensile resistance for high-abuse commercial insulation blankets.
Q: How do you prevent the edges of the foil tape from wrinkling or tearing before use?
A: We utilize precision slitting machinery that guarantees smooth, micro-burr-free edges on every roll. Additionally, plastic side-guard discs are inserted in every box to protect the roll edges from impact damage during transit.
Q: Can I request full REACH and RoHS documentation for custom clearing in the EU?
A: Absolutely. We maintain up-to-date compliance certifications with independent testing firms. Full chemical analysis, SDS sheets, and compliance certificates are issued electronically alongside your commercial invoice documents.
Q: Do you supply jumbo logs for regional converters who have their own slitting operations?
A: Yes. We can supply untrimmed aluminum foil master logs up to 1200 mm or 1300 mm in width and lengths up to 1000 m for industrial conversion facilities worldwide.
Q: What are the primary payment conditions for new international distribution accounts?
A: Our standard terms for initial trade configurations are 30% T/T deposit down with the outstanding 70% balanced against electronic presentation of the original Bill of Lading (B/L) and packing lists.
Q: Can we get free samples for laboratory testing before placing a commercial order?
A: Yes, we provide free sample rolls (standard widths) for qualified commercial buyers to conduct shear, peel, and temperature-resistance testing. You only cover the express courier cost, which is fully refundable upon your first bulk order.
