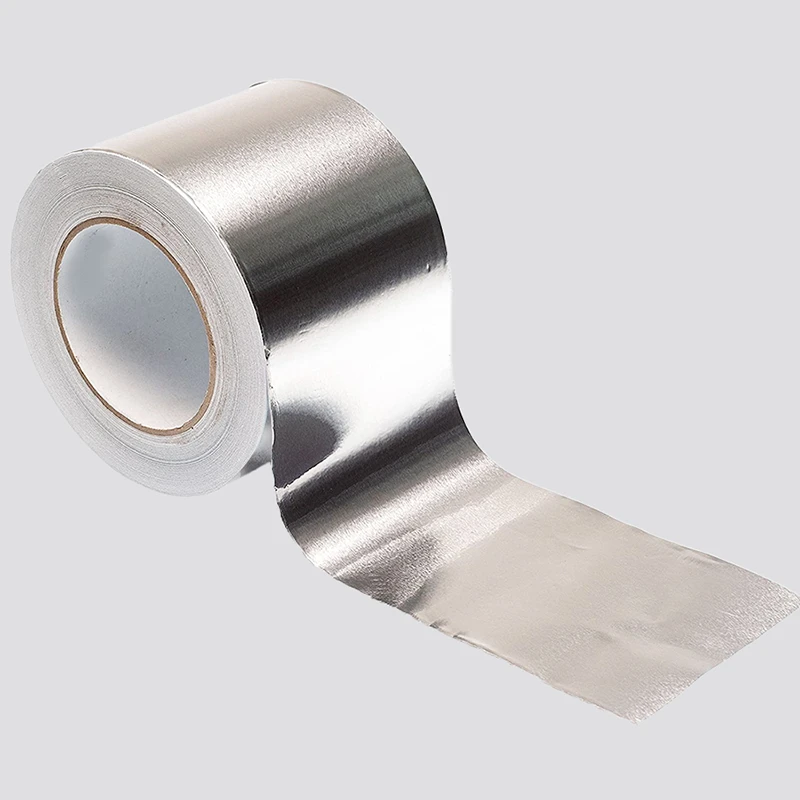

Aluminum Foil Duct Tape
Aluminum Foil Duct Tape is a pressure-sensitive sealing tape with a dead-soft aluminum foil backing and an acrylic adhesive system. It is designed for sealing HVAC duct seams, joining foil-faced insulation materials, and securing compatible metal and insulation joints.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Aluminum Foil Duct Tape is a pressure-sensitive sealing tape with a dead-soft aluminum foil backing and an acrylic adhesive system. It is designed for sealing HVAC duct seams, joining foil-faced insulation materials, and securing compatible metal and insulation joints.
Product Specifications
|
Property / Parameter |
Technical Data / Specification |
|
Backing Material |
Premium Dead-Soft Aluminum Foil |
|
Adhesive Type |
High-Performance Solvent Acrylic (Cold-Weather Formulated) |
|
Foil Thickness |
0.030 mm (1.2 mils) / 0.040 mm (1.5 mils) / 0.050 mm (2.0 mils) |
|
Total Thickness (w/o Liner) |
0.070 mm to 0.090 mm (2.8 mils - 3.5 mils) ± 0.005 mm |
|
Release Liner |
Siliconized PE-coated paper / Easy-release craft liner |
|
Adhesion to Steel |
≥ 18 N/25mm |
|
Tensile Strength |
≥ 45 N/25mm |
|
Flame Spread / Smoke Developed |
Class 0 / Class 1 Rated (Meets UL 723 standards) |
|
Temperature Resistance |
-35°C to +120°C (-31°F to +248°F) |
|
Standard Roll Dimensions |
48mm × 45m, 72mm × 45m (Custom sizes up to 1200mm available) |
Substrate Compatibility
Galvanized Steel
Sealing duct joints, transverse seams, flanges, and connections on galvanized steel ductwork.
Aluminum
Bonding and sealing aluminum ductwork, panels, and reflective insulation surfaces.
Stainless Steel
Sealing joints and connections on stainless steel HVAC components and mechanical equipment.
Foil-Faced Insulation
Seaming and sealing foil-faced insulation boards, wraps, and reflective insulation systems.
Fiberglass Duct Board
Suitable for sealing compatible foil-faced fiberglass duct board seams and joints during air-distribution system fabrication.
Mineral Wool Jacket
Sealing outer mineral wool jacketing and insulation seams to help maintain a continuous protective layer
Adhesion Performance
Adhesive Chemistry: The pressure-sensitive adhesive provides fast initial tack on compatible metal surfaces and selected insulation facings.
Bond Stability: The adhesive system is designed to maintain adhesion during normal temperature changes and mechanical movement associated with compatible HVAC sealing applications.
Foil Conformability: 30-micron dead-soft aluminum backing molds around rivets, sheet metal flanges, and tight corners.
Release Liner: The siliconized paper liner is designed for controlled release during application while helping protect the adhesive surface before use.
Temperature & Environmental Resistance
Temperature Resistance: The selected tape grade can be specified for applications requiring performance within the stated temperature range.
UV Shielding: The metallic aluminum backing helps block UV exposure, reducing adhesive degradation.
Moisture Sealing: The foil backing and adhesive construction help seal compatible insulation-facing seams and overlaps, reducing localized moisture and water-vapor ingress through the taped joint.
Indoor Mechanical Environments: Suitable for use in typical indoor mechanical and HVAC environments where exposure to dust and light airborne contaminants may occur.
Private Label & Custom Manufacturing
Custom Dimensions
Finished rolls can be supplied from 19 mm widths, with wider master-roll formats available up to the specified production width for industrial converting.
Core Branding
Custom multi-color logo printing on 3-inch heavy-duty inner paper cores.
Adhesive Options
Acrylic, hot-melt, or rubber-based adhesive systems can be evaluated for different substrates, installation temperatures, and application requirements.
OEM Packaging
Options include individual shrink wrapping, custom labels, counter display boxes, and barcoded outer cartons.
Compliance
Regulatory Documentation: REACH and RoHS compliance documentation can be provided for applicable product specifications and destination-market requirements.
Export Documentation: Commercial documents such as the Commercial Invoice, Packing List, and Bill of Lading can be prepared for export shipments.
Sample Evaluation: Sample rolls can be supplied for buyer-side application testing or independent laboratory evaluation before bulk order approval.
FAQ
Q: What is the minimum order quantity and lead time for this tape?
A: MOQ starts at 1,000 rolls for standard widths, with production lead time of 12–15 days after order confirmation, separate from sample dispatch.
Q: What HVAC applications is aluminum foil duct tape suitable for?
A: It is commonly used for sealing compatible metal duct seams, foil-faced insulation joints, duct-board facings, and insulation jacketing overlaps.
Q: Can this tape be used for foil-faced insulation seams?
A: Yes, the dead-soft aluminum backing is designed to conform to compatible foil-faced insulation surfaces and seam overlaps.
Q: What is the adhesive coating weight?
A: 45-50 g/m², with other coating weights available according to application and performance requirements.
Q: What information is needed for a custom order?
A: Buyers should specify tape width, roll length, foil thickness, adhesive system, target substrate, installation temperature, and intended service environment.
