Masking Tape Roll
Masking tape roll is a pressure-sensitive tape engineered with a saturated crepe paper backing and an adhesive layer. It holds protective paper or film securely during painting, seals edges to prevent bleed-through, and strips away cleanly without leaving adhesive residue or damaging the underlying surface.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Masking tape roll is a pressure-sensitive tape engineered with a saturated crepe paper backing and an adhesive layer. It holds protective paper or film securely during painting, seals edges to prevent bleed-through, and strips away cleanly without leaving adhesive residue or damaging the underlying surface.
Product Specifications
|
Property / Parameter |
Technical Value |
Test Method |
|
Total Thickness |
135 μm +/- 5 μm (5.3 mil) |
ASTM D3652 / ISO 29862 |
|
Adhesive System |
Cross-linked Solvent Rubber / Water-based Acrylic |
- |
|
Carrier Backing |
Saturated Crepe Paper (60g/m2) |
- |
|
Peel Adhesion (180°) |
≥ 6.5 N / 25mm |
ASTM D3330 / ISO 29862 |
|
Tensile Strength |
≥ 85 N / 25mm |
ASTM D3759 / ISO 29864 |
|
Elongation at Break |
8% - 12% |
ASTM D3759 |
|
Temperature Resistance |
Standard: 60°C (140°F) | Automotive: 80°C to 120°C (176°F to 248°F) |
60 Mins Exposure Test |
|
Clean Removal Window |
Up to 14 Days (Depending on grade) |
Internal UV Chamber Test |
|
Standard Jumbo Dimensions |
1490mm x 1500m / 1250mm x 2000m |
Custom Logs/Finished Rolls Available |
Masking Tape Applications
Commercial Architectural Painting: Fast manual application on long straight runs, baseboards, and window frames for field contractors.
Automotive Refinishing: Selected grades can be used with compatible waterborne and solvent-based coating systems and evaluated for IR curing cycles up to 80°C (176°F) for 30 minutes.
Furniture & Cabinetry: Suitable for masking compatible veneered panels, hardwood edges, and trim during staining, spraying, and finishing processes.
Surface Compatibility
Painted Drywall: Selected grades can be evaluated for clean removal within defined application periods on fully cured painted drywall. Surface testing is recommended before large-scale use.
Smooth Automotive Plastics: Selected adhesive grades provide controlled peel adhesion of approximately 2.5–3.5 N/25 mm for temporary masking on compatible automotive plastic surfaces.
Untreated Bare Wood: Can provide temporary adhesion on compatible wood surfaces, although removal performance should be tested because surface fibers and porosity can vary.
Powder-Coated Metal: Adheres reliably to low-surface-energy finishes and releases cleanly post-application.
Backing & Edge Design
Saturated Crepe Paper Base
Impregnated backing blocks latex, oil-based coatings, and clear topcoats from soaking through.
Precision-Slit Edges
Clean and consistent slit edges help maintain stable tape application and support more uniform masking boundaries during painting.
Conformable Backing
The crepe paper construction follows straight edges, corners, and moderate curves during manual masking.
OEM & Custom Sizes

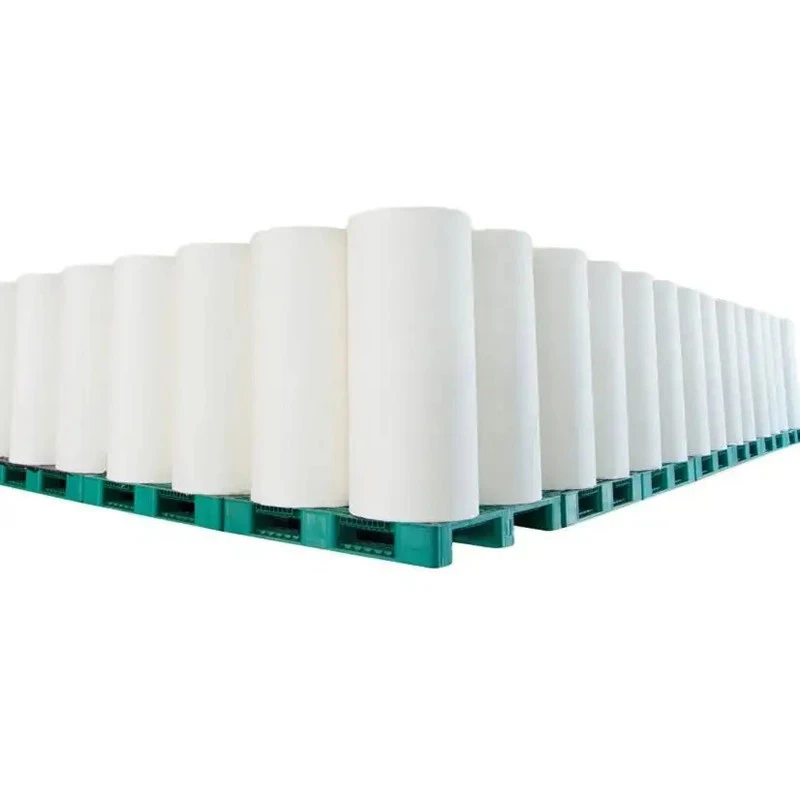

Master Roll Supply: Jumbo rolls and master logs are available in widths up to 1250 mm and 1490 mm for regional converters and slitting operations.
Custom Slitting: Finished roll widths can be customized from 3 mm upward according to converter and distributor requirements.
Roll Length Options: Finished rolls can be supplied in standard retail lengths such as 20 m and 50 m, while longer industrial lengths can be customized for converting and automated processing.
Private Label Options: Custom logo printing, labels, packaging, and selected core sizes can be supplied according to the finished roll specification.
Commercial Terms
MOQ: Flexible order minimums starting at 500 rolls for custom sizes, or 5 master logs for converters.
Export Packaging: Packaging options include individual wrapping, barcode labeling, corrugated cartons, and palletization according to the destination market and shipping method. ISPM-15-compliant wooden pallets can be supplied where required.
Storage: Retains rated tack and adhesion for 12 months when stored at 21°C (70°F) and 50% relative humidity.
Samples & Export Support: Sample availability and dispatch time can be confirmed based on the selected specification. Commercial and export documentation, including the Commercial Invoice, Packing List, Bill of Lading, and applicable Certificates of Origin, can be prepared according to shipment and destination requirements.
FAQ
Q: How should buyers select the right masking tape adhesive for their application?
A: Adhesive selection depends on the substrate, coating process, application temperature, and required removal period. Buyers can provide these conditions to help determine a suitable acrylic, rubber, or other adhesive grade.
Q: Can this masking tape be used with both waterborne and solvent-based paints?
A: Selected grades can be evaluated with compatible waterborne and solvent-based coating systems. Buyers should confirm the specific paint chemistry and exposure conditions before bulk approval.
Q: How is clean removal performance evaluated?
A: Samples can be applied to the intended substrate for a defined exposure period and then removed after the relevant painting or curing process. The surface is inspected for adhesive transfer, paint lifting, and visible residue.
Q: Is the tape suitable for heat-curing or automotive refinishing?
A: Selected grades can be evaluated for automotive refinishing and defined heat-curing conditions.
Q: How can converters verify roll consistency before placing a bulk order?
A: Samples can be evaluated for thickness, adhesion, tensile strength, roll dimensions, and unwinding performance before mass production.
Q: What is the production lead time for a full container order, separate from the 48-hour sample dispatch?
A: Standard mass production takes 12–15 days after deposit confirmation, followed by 15–20 days of FCL shipping from Ningbo/Shanghai.
