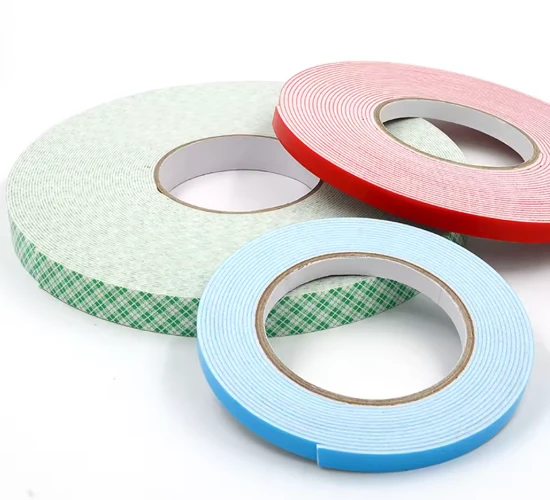

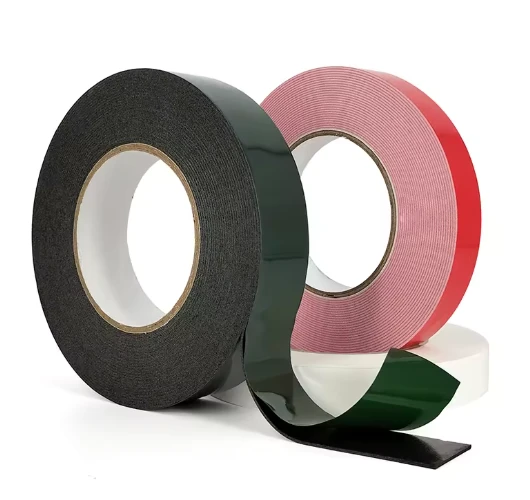

Heavy Duty Double Sided Adhesive Tape
Heavy duty double-sided adhesive tape is a structural bonding solution designed to permanently join metals, plastics, glass, and composites. Provides a clean, fastener-free bonding method while distributing load across the bonded area.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Heavy duty double-sided adhesive tape is a structural bonding solution designed to permanently join metals, plastics, glass, and composites. Provides a clean, fastener-free bonding method while distributing load across the bonded area.
Product Specifications
|
Specification / Property |
Value / Detail |
Test Method |
|
Carrier Material |
Acrylic Foam / PE Foam / PET / Fabric |
- |
|
Adhesive Type |
High-Tack Acrylic / Solvent Rubber |
- |
|
Total Thickness |
0.05 mm to 3.0 mm (Customizable) |
ASTM D3652 |
|
Peel Adhesion |
≥ 25 N/25mm (or custom high-tack) |
ASTM D3330 |
|
Tensile Strength |
≥ 60 N/25mm |
ASTM D3759 |
|
Temperature Resistance |
Long-term: 100°C (212°F) Short-term: 160°C (320°F) |
- |
|
Color |
Clear, Black, White, Gray |
- |
|
Standard Roll Width/Length |
Cut to size (Max Width: 1050mm) |
- |
Surface Compatibility & Applications
Exhibition & Event Flooring: Designed for secure temporary or semi-permanent bonding; removal performance depends on substrate and dwell time.
HVAC & Duct Insulation Splicing: Joins foil-faced insulation blankets, flexible ductwork, and vapor barrier seams in commercial HVAC ventilation systems.
Baseboard & Trim Installation: Mounts vinyl cove bases, carpet edges, and wood trims without mechanical fasteners or liquid glues.
Industrial Material Splicing: Anchors paper rolls, plastic films, and foam fabrics during continuous high-speed web production runs.
Rough Surface Bonding: Adheres to porous masonry, textured plaster, unfinished timber, and uneven concrete.
Temperature & Environmental Resistance
Service Temperature
-20°C to 75°C under recommended application conditions.
Moisture Resistance
Hydrophobic adhesive helps maintain bond performance under humid
conditions.
Cold-Tack Performance
Initial adhesion remains effective on substrates at temperatures down to 0°C (32°F) , subject to surface condition and application pressure.
Shear Creep Resistance
Sustains static load stress exceeding 24 hours (1 kg/6.25 cm² at 40°C) without vertical drag or slippage.
OEM & Private Label Service
Custom Slitting Widths
Available from 12 mm narrow tape strips up to 1060 mm wide-format master jumbo rolls.
Tailored Lengths
Standard 25m and 50m contractor rolls, or custom short and extended runs matched to regional market preferences.
Branded Core Printing
1- to 4-color custom inner paper cores displaying your logo, part numbers, and batch tracking codes.
Custom Adhesive Formulations
Modified synthetic rubber tackifiers adjusted for tropical, temperate, or freezing export destinations.
Why Choose Us
ISO 9001 Certified Factory: 3,000 m² production facility operating over 50 automated coating, slitting, and rewinding lines with 150 skilled technicians.
ASTM Quality Standards: Every production batch is verified for 180° peel adhesion (ASTM D3330).
Global Chemical Compliance: Raw materials fully comply with EU RoHS and REACH environmental directives for North American and European distribution.
Complete Customs Documentation: Fast customs clearance supported with Form E, Certificate of Origin (CO), Bill of Lading, and Packing Lists.
FAQ
Q: What is the actual 180° peel adhesion value from ASTM D3330 testing?
A: Batch testing confirms 180° peel adhesion of 9–11 N/25mm on both bonding faces, which is verified in the QC lab reports already issued per production lot.
Q: What is the minimum order quantity and standard production lead time?
A: MOQ starts at 300 rolls for standard widths, with a production lead time of 10–12 days after deposit confirmation, separate from sample dispatch.
Q: How does the tape perform under short-term outdoor UV exposure, beyond the standard indoor thermal range?
A: Under direct outdoor sun exposure, the tape maintains bond integrity for up to 5 days before UV-accelerated adhesive hardening increases removal difficulty.
Q: What is the total thickness tolerance across a single jumbo roll?
A: The 230 µm total thickness is held within a ±10 µm tolerance across the full roll width, consistent with the burr-free clean-edge slitting already used in production.
Q: What is the free sample dispatch time for buyers evaluating this tape before a bulk order?
A: Free evaluation samples are dispatched within 48 hours of request, allowing buyers to test adhesion and holding power before committing to the 300-roll MOQ.
