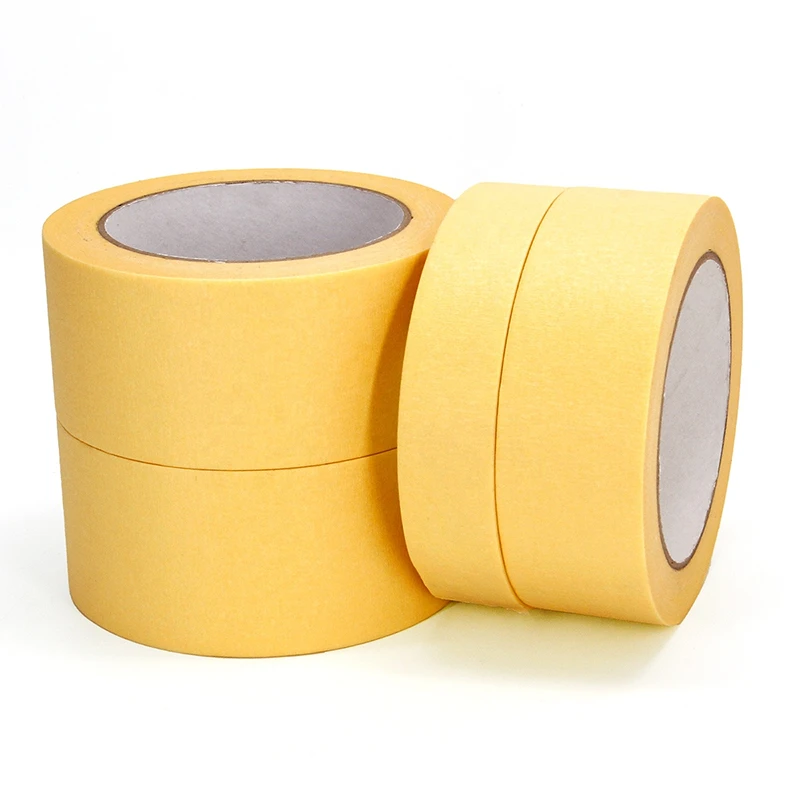

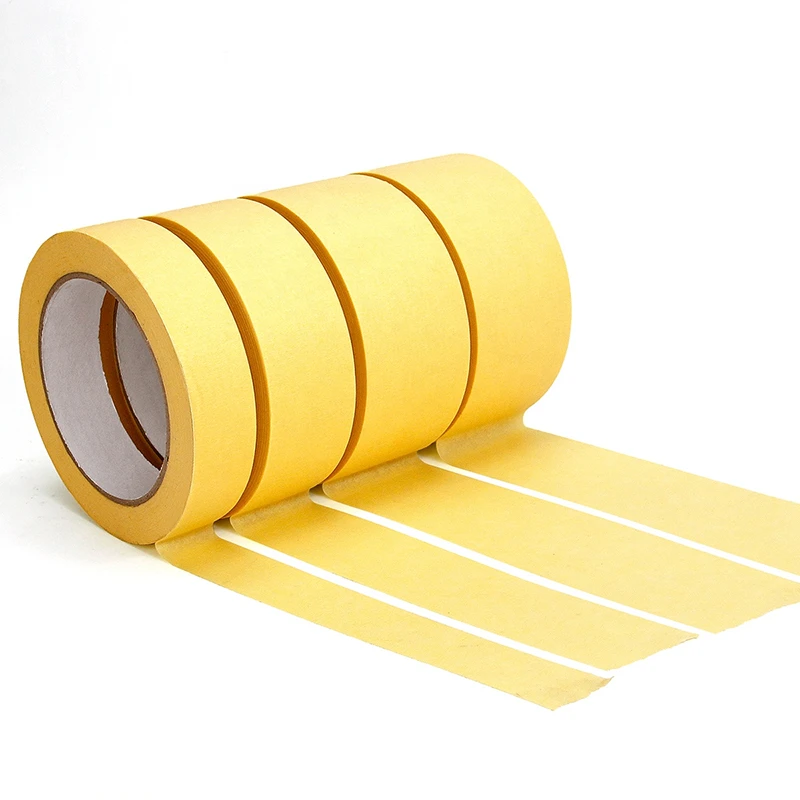

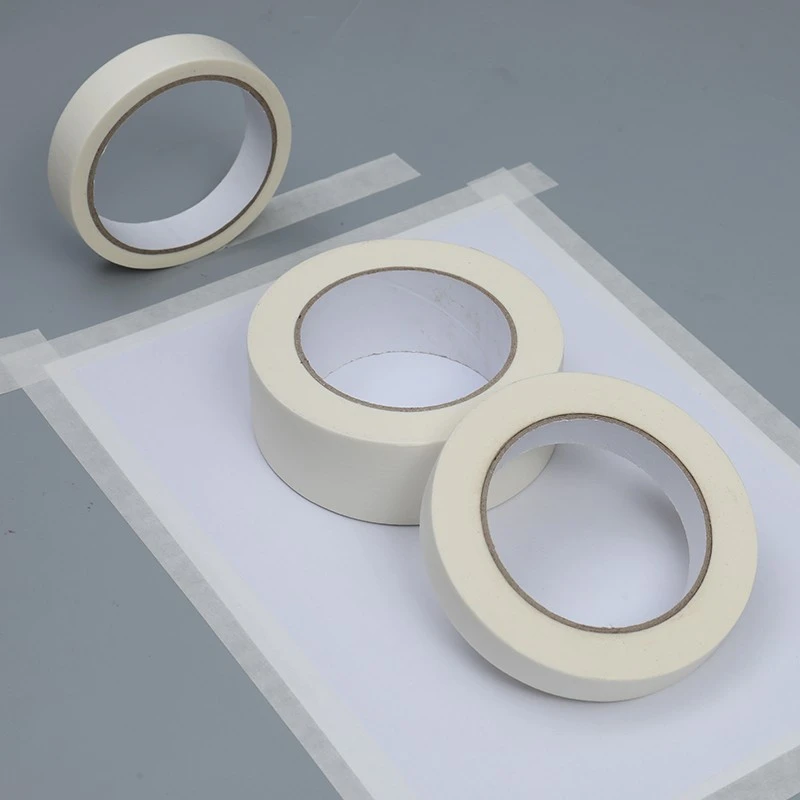

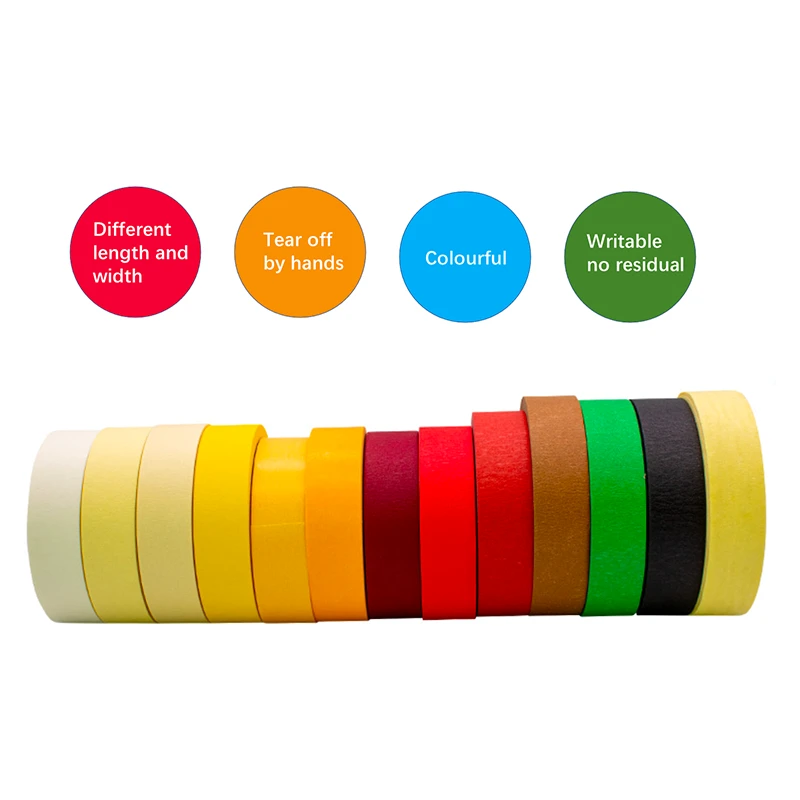

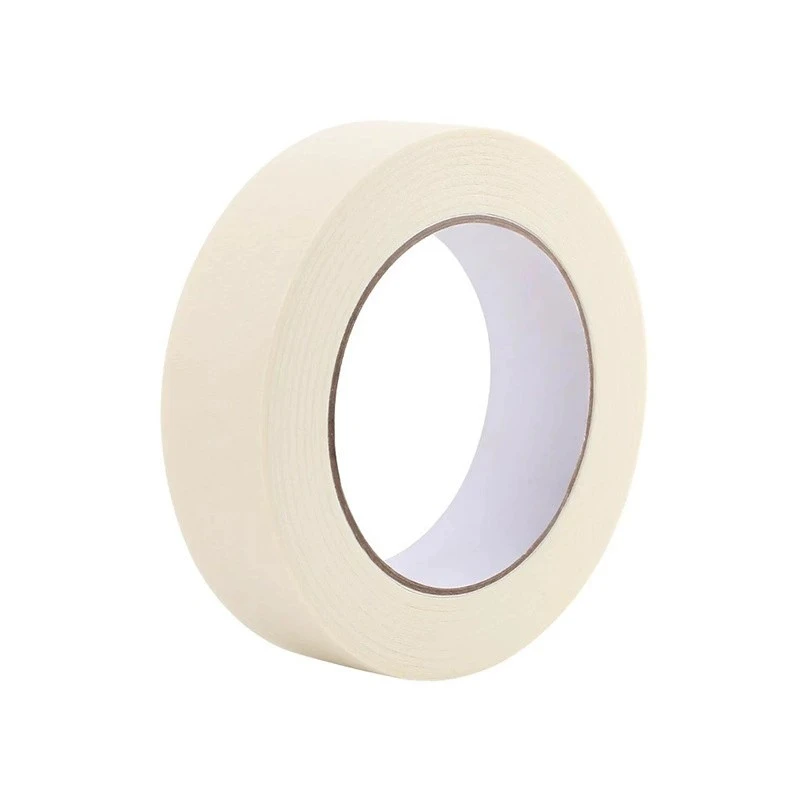

Wide Masking Tape
Wide Masking Tape is a heavy-duty, large-format crepe paper tape designed for fast, high-efficiency surface protection.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Introduction
Wide Masking Tape is a heavy-duty, large-format crepe paper tape designed for fast, high-efficiency surface protection.
Product Specifications
|
Property / Parameter |
Technical Data / Specification |
|
Backing Material |
Heavy-duty, high-density saturated crepe paper |
|
Adhesive System |
Pressure-sensitive natural rubber / Solvent-based acrylic |
|
Total Thickness |
0.145 mm ± 0.005 mm (5.7 mils) |
|
Adhesion to Steel |
≥ 6.5 N/25mm |
|
Tensile Strength |
≥ 85 N/25mm |
|
Elongation at Break |
10% - 15% |
|
Temperature Resistance |
Standard: Up to 80°C (176°F); High-Temp: Up to 150°C (302°F) |
|
Standard Widths |
72mm, 96mm, 144mm, 300mm (Customizable up to 1250mm) |
|
Standard Lengths |
50m, 100m (Customizable jumbo log options available) |
Product Applications
Automotive & Transit Manufacturing: Masking large body panels, commercial truck beds, railcars, and bus roofs during multi-stage spray painting.
Marine & Aerospace: Protecting expansive fiberglass hulls, wings, and aluminum panels from overspray and mechanical abrasion.
Construction & Flooring: Temporary floor lining protection, large window/door frame masking, and sealing dust-containment barriers.
Industrial Sandblasting: Light-duty surface masking to shield sensitive areas from media overspray and grit bounce.
Shipping & Packaging
Export Protection: Individually shrink-wrapped with side-protective discs in 5-layer corrugated cartons, stacked on heat-treated pallets.
Logistics Support: Fully compatible with ocean freight (FCL/LCL), air cargo, and multi-modal transport.
Lead Times:
Samples: 24–48 hour dispatch; 3–5 days delivery via DHL/FedEx/UPS.
Standard Orders: 14–18 days.
Custom OEM Orders: 21–25 days (depending on complexity).
Why Choose Us
Verified Certifications: ISO 9001:2015 certified; fully compliant with REACH, RoHS, and up-to-date SDS standards for seamless importing.
High-Volume Capacity: 3 automated wide-width coating lines produce over 6,500,000 m² monthly, eliminating peak-season stockouts.
Low Commercial MOQ: Flexible inventory support starting at just 1 full pallet for custom widths or 500 rolls for standard stock.
After-Sales Support & Quality Assurance
Batch Traceability: Every pallet is marked with a production run ID; master samples are retained for 2 years to ensure full historical traceability.
12-Month Warranty: Full adhesive performance guaranteed for 12 months when stored under standard conditions (20°C to 25°C, 50% Relative Humidity).
24-Hour Remediation: Quality claims receive engineering feedback within 24 hours. Validated defects are fully compensated via credit or immediate replacement air shipments at our expense.
FAQ
Q: Does the wide format cause the tape to telescope or warp during long-term storage?
A: No. We utilize advanced tension-controlled rewinding systems and moisture-proof packaging with structural side-discs. This eliminates telescoping and edge-warping, even during extended maritime shipping through high-humidity zones.
Q: Can your wide masking tape handle high-temperature industrial baking ovens?
A: We manufacture two distinct grades. Our standard grade supports up to 80°C (176°F), while our specialized industrial grade utilizes a cross-linked rubber system capable of withstanding up to 150°C (302°F) without adhesive transfer or backing brittleness.
Q: How does wide masking tape prevent tearing when peeling it off a large surface?
A: Our backing paper is treated with a specific saturation agent that elevates its cross-directional tensile strength (≥ 85 N/25mm). This prevents the tape from splitting down the middle or shredding into small pieces when pulled from large surfaces.
Q: Are your adhesive materials compliant with EU import requirements?
A: Yes. All of our adhesive formulations are 100% free of SVHCs (Substances of Very High Concern) and fully comply with EU REACH and US TSCA regulations. Full documentation can be provided prior to ordering.
Q: What is your standard packaging configuration for a 72mm or 96mm width order?
A: For 72mm rolls, we typically pack 24 rolls per carton; for 96mm, we pack 18 rolls per carton. All cartons are stacked tightly on standardized export pallets with edge corner protectors and heavy wrap to ensure zero shifting during transit.
Q: Can we request a custom adhesive formula if we work on marine gelcoats?
A: Yes. Marine gelcoats require specific peel properties to prevent ghosting on premium resins. Our R&D lab can calibrate a specialized low-residue, medium-tack formula optimized for marine and composite applications.
